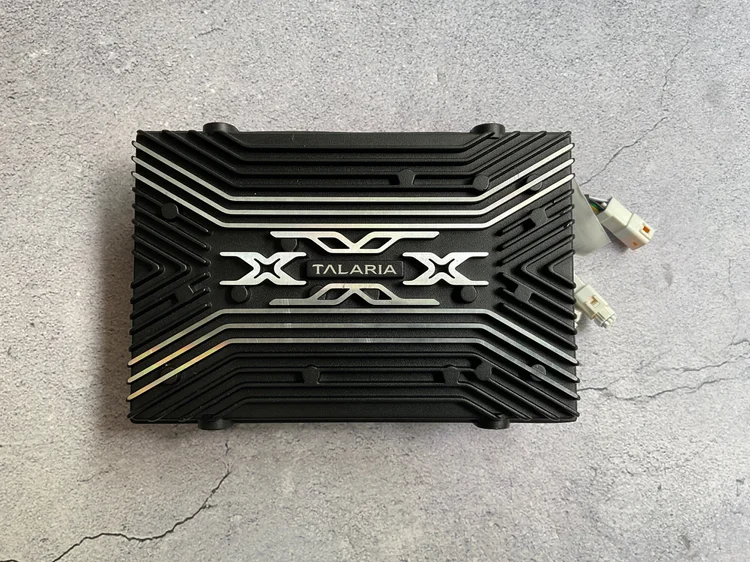

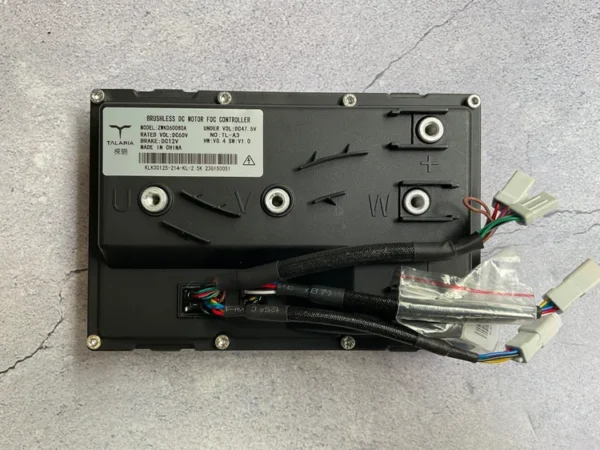

Talaria XXX controller

The Talaria XXX controller 2025 is a sophisticated electric bike control unit designed to maximize performance, efficiency, and customization for Talaria’s top-tier electric dirt bike models. Built around a powerful ARM Cortex M4 CPU, the controller offers precise and responsive control of the BLDC motor, with an efficiency rating of up to 98% due to advanced MOSFET transistors and specialized PWM algorithms. This ensures optimal power delivery and battery usage while maintaining thermal management with an aluminum housing optimized for heat dissipation.

Supported by a comprehensive feature set, the Talaria XXX controller includes voltage monitoring across motor phases and battery cells, phase current sensing with hardware overcurrent protection, and temperature sensors that guard both the motor and controller against overheating. It supports motors with any number of poles and auto-detects sensor types, making it versatile enough to accommodate various motor configurations. The controller offers multiple modes of operation such as torque mode, speed mode, and combined mode, delivering instant throttle response without lag.

Advanced user customization is facilitated through a configurable display and onboard computer interface, allowing riders to adjust power output, throttle curves, and choose from different power profiles tailored for efficient commuting or aggressive off-road performance. The controller supports regenerative braking with multiple modes, enhancing battery range and braking stability. Additionally, it integrates seamlessly with vehicle CAN-bus systems, supporting multiple controllers and peripherals including lighting systems and brake signals.

Designed for rugged use, the Talaria XXX controller supports operating temperatures from -30°C to 80°C, making it suitable for extreme environments. Firmware updates and parameter settings are easily managed via microSD card, ensuring the system remains up to date with the latest optimizations and features.

With Plug & Ride installation compatibility, the controller replaces the factory unit without impacting existing wiring or vehicle functionality, including kickstand, fall sensor, throttle, key, headlights, brake lights, and turn signals on road-legal versions. Riders benefit from enhanced power output—up to 8kW with a standard 60V battery and up to 27kW with upgraded 72V setups—while gaining the ability to fine-tune drive parameters for maximum riding enjoyment.

In conclusion, the Talaria XXX controller is a cutting-edge electronic control system engineered for high power, responsiveness, and adaptability. Whether for sport or utility, it dramatically elevates the riding experience, making it a crucial component for enthusiasts seeking superior speed, torque, and battery efficiency on their Talaria electric dirt bikes.
